L-Y Series
L-Y Series
L2000LSYL2000LYL2000SYL2000YL2600LYL2600SYL2600YL3000LYL3000SYL3000Y
综合考虑高速、高刚性、高精度且实现生产性极大化的巍亚数控机床工程集约型复合加工车床
⦁ 缩短加工周期, 提升加工生产性 ⦁ 补偿性Y轴与BMT65P的刀塔保证了复合式加工 ⦁ 主轴与副主轴间的同时控制实现了工序的节约 ( “S”类型) ⦁ 通过配置硬轨, 强化了重切削的能力 ⦁ 润滑装置前部集中化的设计提升了设备的保修性

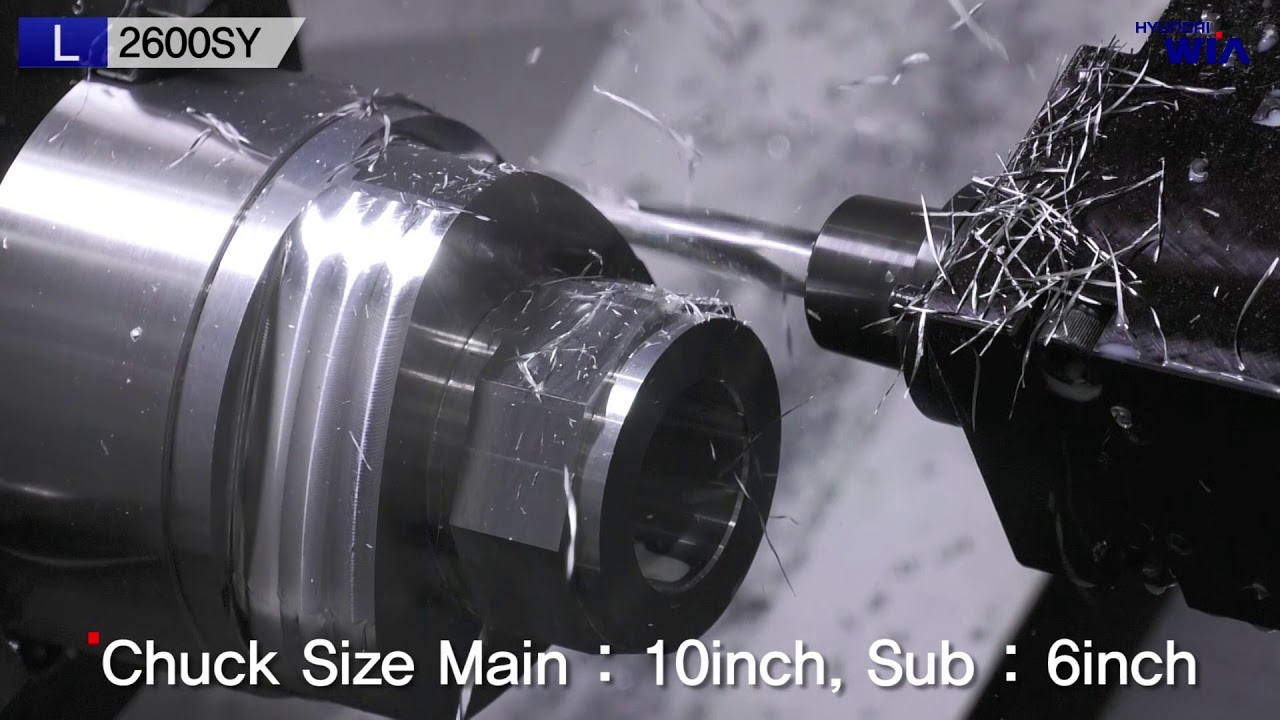

L-Y Series
暂无视频。
Specifications
| MODEL | L2000LSY | L2000LY | L2000SY | L2000Y | L2600LY | L2600SY | L2600Y | L3000LY | L3000SY | L3000Y | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 卡盘尺寸 | inch | 8 | 8 | 8 | 8 | 10 | 10 | 10 | 12 | 12 | 12 |
| 最大加工直径 | mm | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 | 420 |
| 最大加工长度 | mm | 760 | 760 | 520 | 520 | 1280 | 760 | 760 | 1280 | 760 | 760 |
| 最大行程 (X/Y/Z) | mm | 265/120/830/830 | 265/120/830 | 265/120/590/590 | 265/120/590 | 265/120/1350 | 265/120/830/830 | 265/120/830 | 265/120/1350 | 265/120/830/830 | 265/120/830 |
| 快速进给 (X/Y/Z) | mm | 30/10/30/30 | 30/10/30 | 30/10/30/30 | 30/10/30 | 30/10/30 | 30/10/30/30 | 30/10/30 | 30/10/30 | 30/10/30/30 | 30/10/30 |
| 主轴转速 | r/min | 5,000 | 5,000 | 5,000 | 5,000 | 4,000 | 4,000 | 4,000 | 3,000 | 3,000 | 3,000 |
| 主轴功率 | kW | 22/11 | 22/11 | 22/11 | 22/11 | 22/15 | 22/15 | 22/15 | 37/25 | 37/25 | 37/25 |
| 主轴扭矩 | N.m | 358/301 | 358/301 | 358/301 | 358/301 | 599/409 | 599/409 | 599/409 | 1,262/1,003 | 1,262/1,003 | 1,262/1,003 |
| 主轴驱动方式 | - | Built in | Built in | Built in | Built in | Built in | Built in | Built in | Built in | Built in | Built in |
| 刀具数量 | EA | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 | 12 |
| 旋转刀具转速 | r/min | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 | 5,000 |
| 滑动方式 | - | BOX | BOX | BOX | BOX | BOX | BOX | BOX | BOX | BOX | BOX |
为提升品质，本机械规格可能未经通知而变更。
[ ] : Option
